Customer workflow
Customers browse seasonal produce, build a harvest box, review totals, and submit produce box requests.
case.study // freshbasket.aws
A documented AWS deployment of a Node.js and MySQL vendor portal.
Deployed a Node.js, Express, EJS, and MySQL vendor portal using Elastic Beanstalk, EC2, RDS MySQL, custom VPC networking, security groups, load balancing, Auto Scaling, environment variables, and SNS notification setup.
Live AWS resources are no longer active because this assessment used AWS Academy Learner Lab. Architecture diagrams, configuration screenshots, database connection proof, and application screenshots preserve the deployment evidence.
FreshBasket preview
Deployment snapshot
The AWS story, at a glance.
- Role
- Cloud / Full-Stack Deployment
- App stack
- Node.js, Express, EJS, MySQL
- Platform
- AWS Academy Learner Lab
- Core services
- Beanstalk, EC2, RDS, VPC, SG, SNS
Deployment model
Load-balanced Elastic Beanstalk environment with Auto Scaling from 2 to 8 instances.
Evidence status
Documented deployment; lab environment expired. Architecture, configuration, SQL proof, and application screenshots remain available.
00 // project.context
What FreshBasket is.
FreshBasket Harvest is a full-stack vendor portal for seasonal produce boxes. Customers browse produce, build a harvest box, review totals, and submit requests. Admin users monitor request metrics, fulfilment status, and customer box requests.
Admin workflow
Admin users monitor request metrics, fulfilment status, and customer box requests.
Database-backed app
Produce items, box requests, and request line items are stored in MySQL-backed tables.
Deployment focus
The case study focuses on AWS configuration, database connectivity, scaling setup, and evidence capture.
01 // architecture
AWS deployment architecture.
A high-level view of how browser traffic reached the application and database layer.
layer.01
User Browser
layer.02
Application Load Balancer
layer.03
Elastic Beanstalk Environment
layer.04
EC2 Application Instances
layer.05
RDS MySQL Database
This architecture shows how public web traffic reached the app layer while database access remained restricted behind security group rules.
Supporting AWS configuration
Custom VPCPublic SubnetsRoute TableInternet GatewaySecurity GroupsIAM LabRole / LabInstanceProfileSNS Email NotificationsEnvironment Variables
02 // deployment.flow
How deployment worked.
A compact view of the deployment path from app preparation to evidence capture.
selected.step
Prepare app
Prepared the Node.js, Express, EJS, and MySQL application for cloud deployment with environment-driven configuration.
03 // database.integration
RDS MySQL connection.
RDS MySQL stored produce and customer request data for the deployed vendor portal.
EC2 to RDS SQL query
Tables verified
produce_itemsbox_requestsbox_request_items
The query evidence connects the deployed application layer to persistent RDS data rather than only showing an isolated AWS configuration screen.
04 // security.networking
Security and networking.
Public application access was separated from database access.
Web traffic
HTTP to app / load balancer
Database traffic
MySQL 3306 from app SG only
Network boundary
Custom VPC
Public access
Subnets, route table, IGW
The web app allowed HTTP access, while RDS MySQL was restricted to the application security group on port 3306.

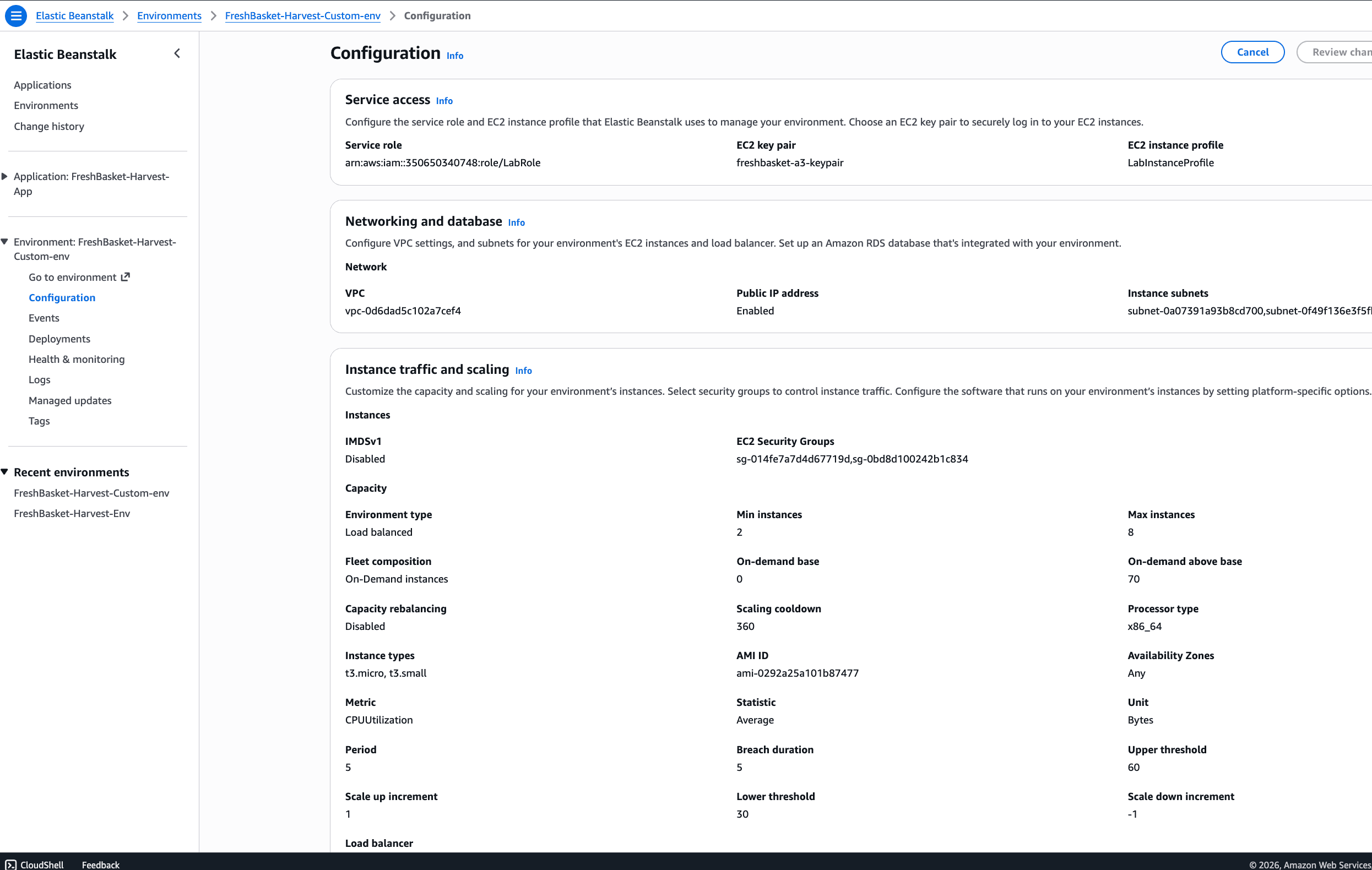

Custom VPC
Hosted deployment resources inside a controlled AWS networking boundary.
Public subnets
Provided public subnet placement for application-facing resources.

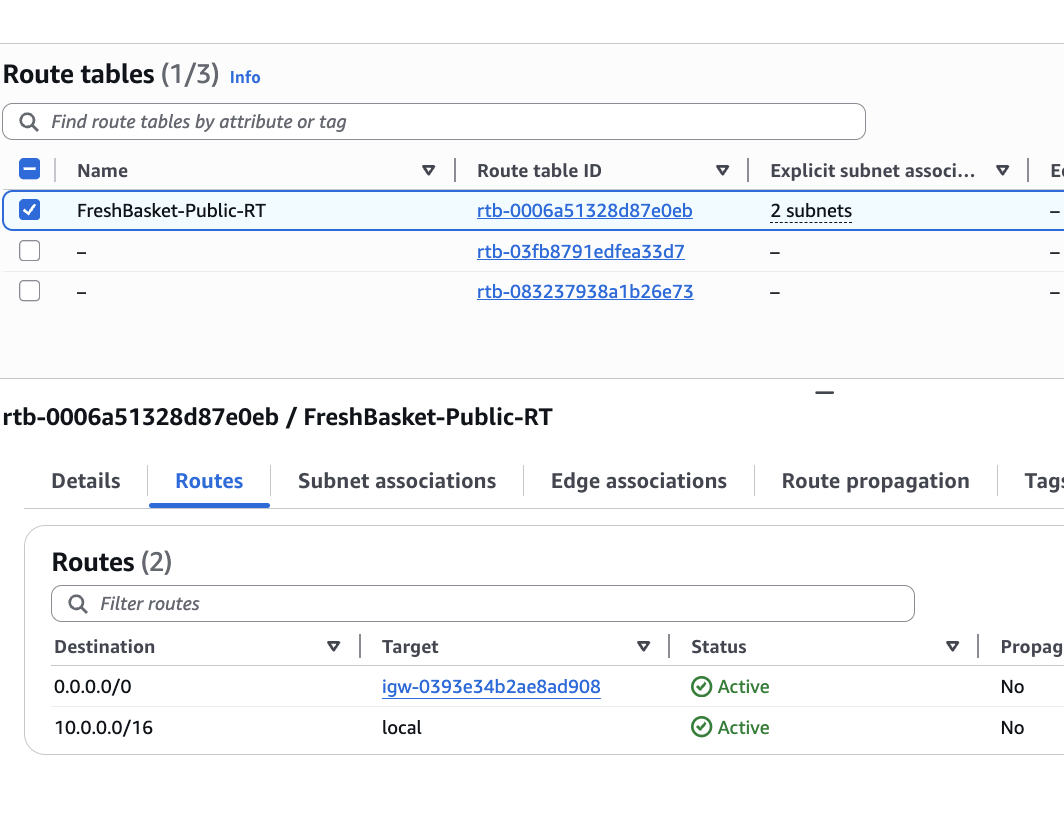

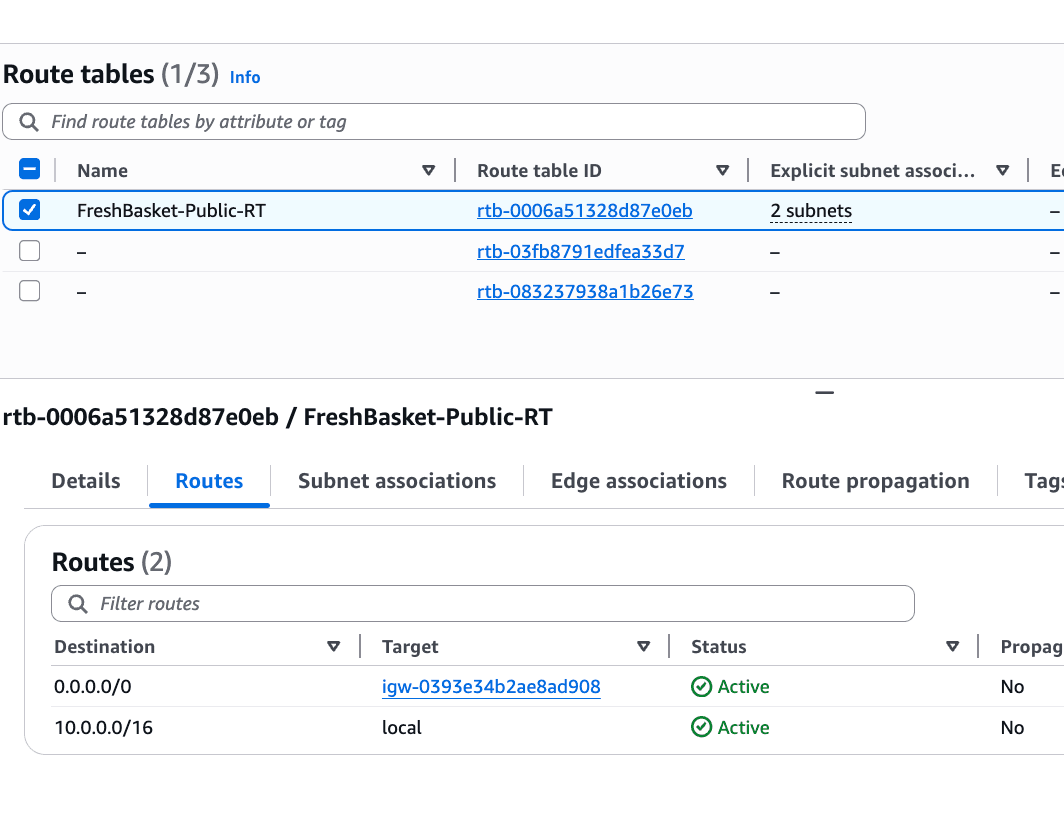

Route table + Internet Gateway
Enabled web access through route table and gateway configuration.
Security groups
Allowed HTTP access to the application while restricting MySQL access to the app security group.
Swipe 0%
05 // scaling.operations
Scaling and operations.
Elastic Beanstalk was configured as a load-balanced environment with Auto Scaling capacity.
Load balancing
Elastic Beanstalk environment
Auto Scaling
Min 2 / Max 8
Runtime image
Custom AMI
Configuration
Environment variables
Monitoring
Health and events
Access roles
IAM role / instance profile
Elastic Beanstalk Health

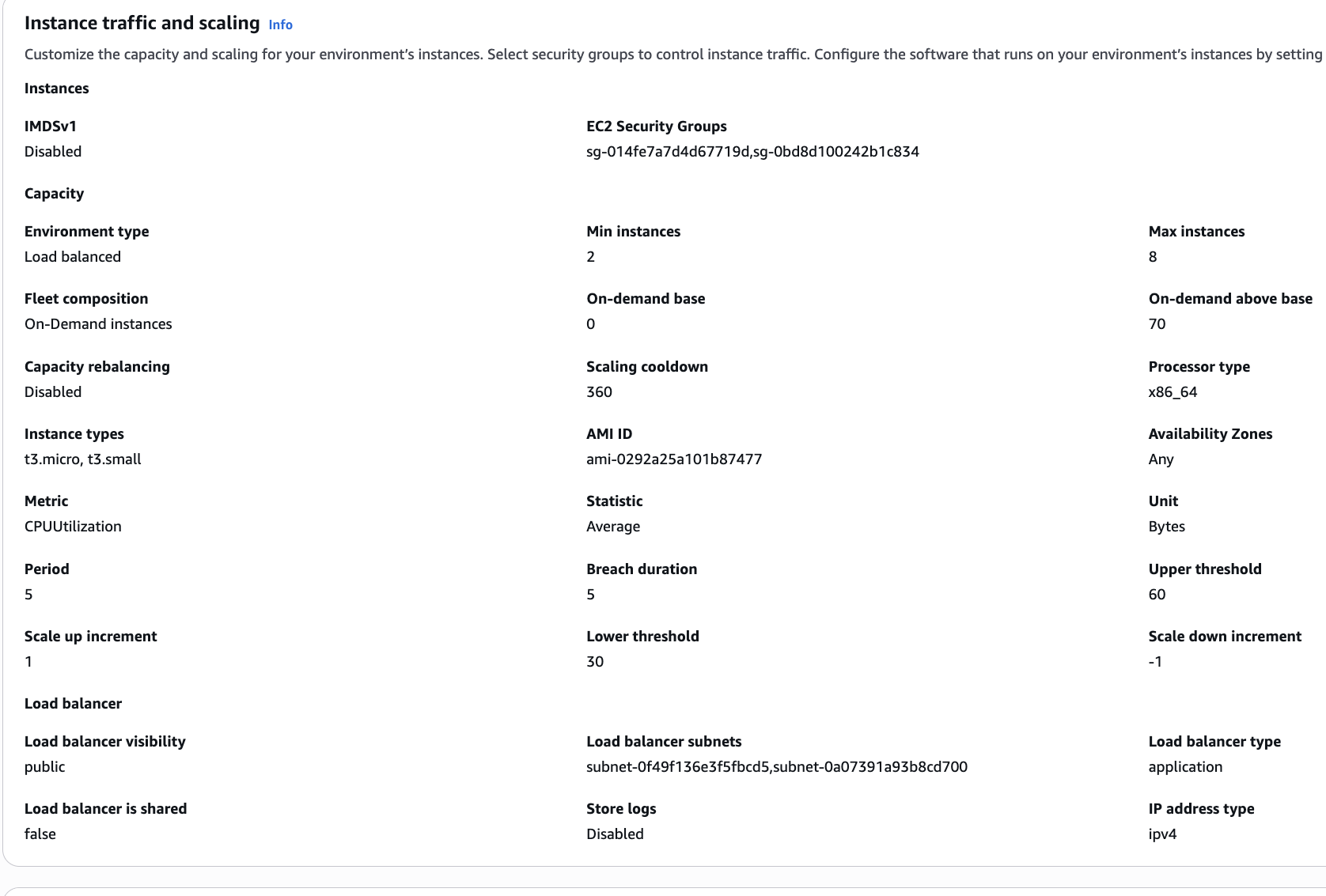

Scaling Configuration

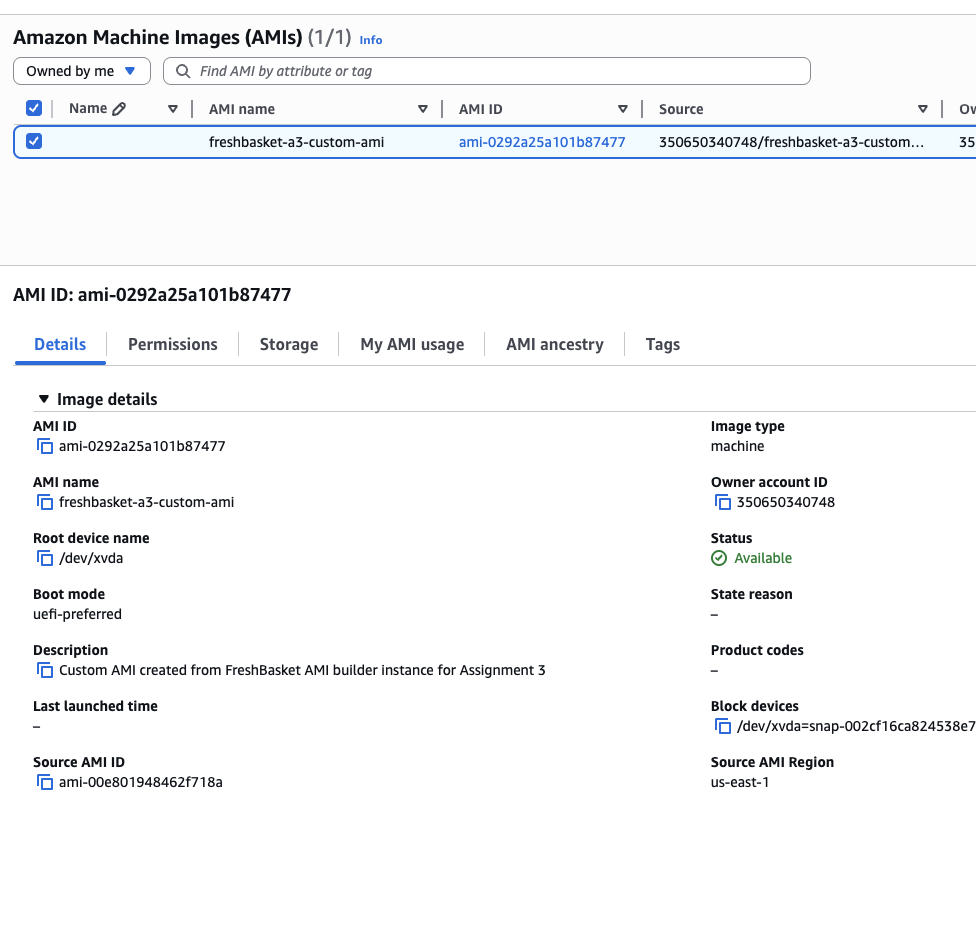

Custom AMI
Swipe 0%
06 // evidence.gallery
Deployment evidence.
Screenshots and diagrams document the AWS deployment after the Learner Lab environment expired.
Sensitive identifiers, endpoints, account details, emails, and credentials are cropped or blurred.

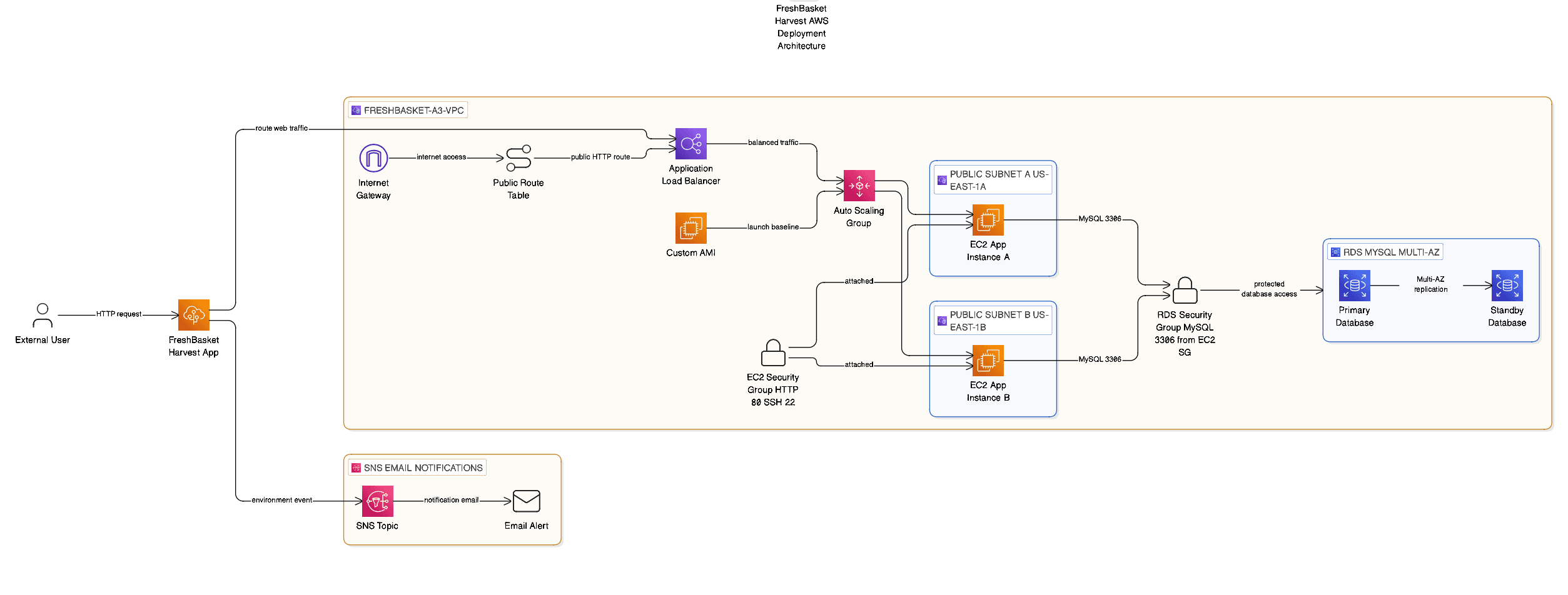

Architecture Diagram
ArchitectureHigh-level architecture diagram showing the deployed app, AWS services, and database path.

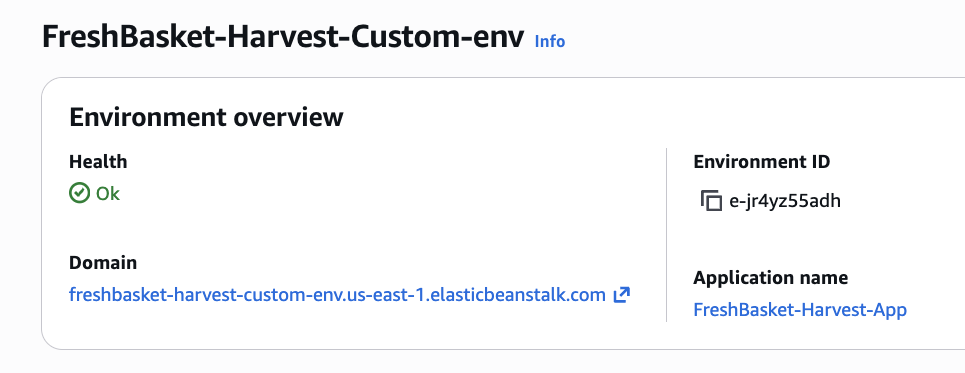

Elastic Beanstalk Health
AWS deploymentEvidence that the Elastic Beanstalk environment reached a healthy deployment state.

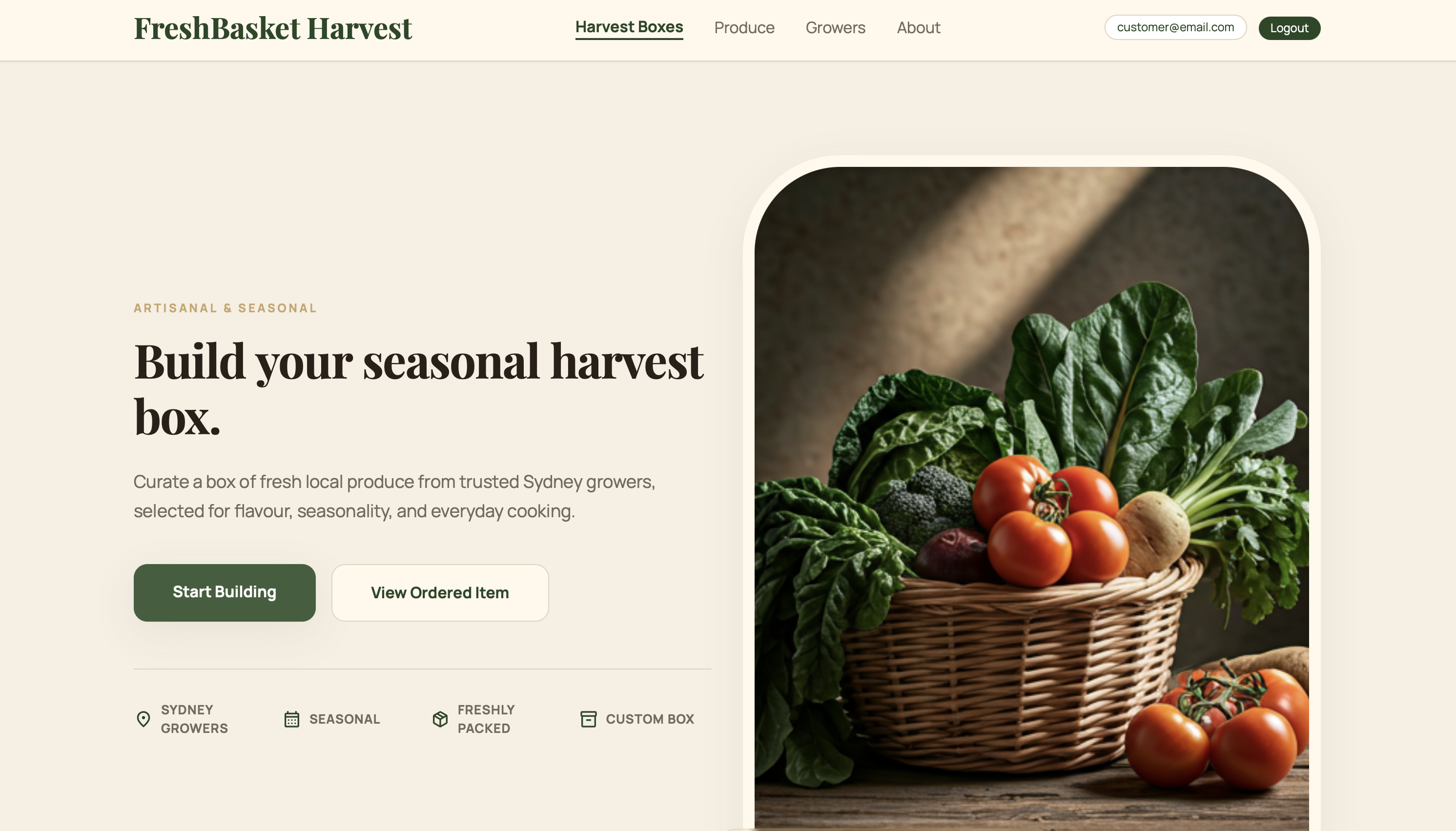

FreshBasket Landing Page
Application UIApplication landing page evidence showing the deployed FreshBasket user interface.

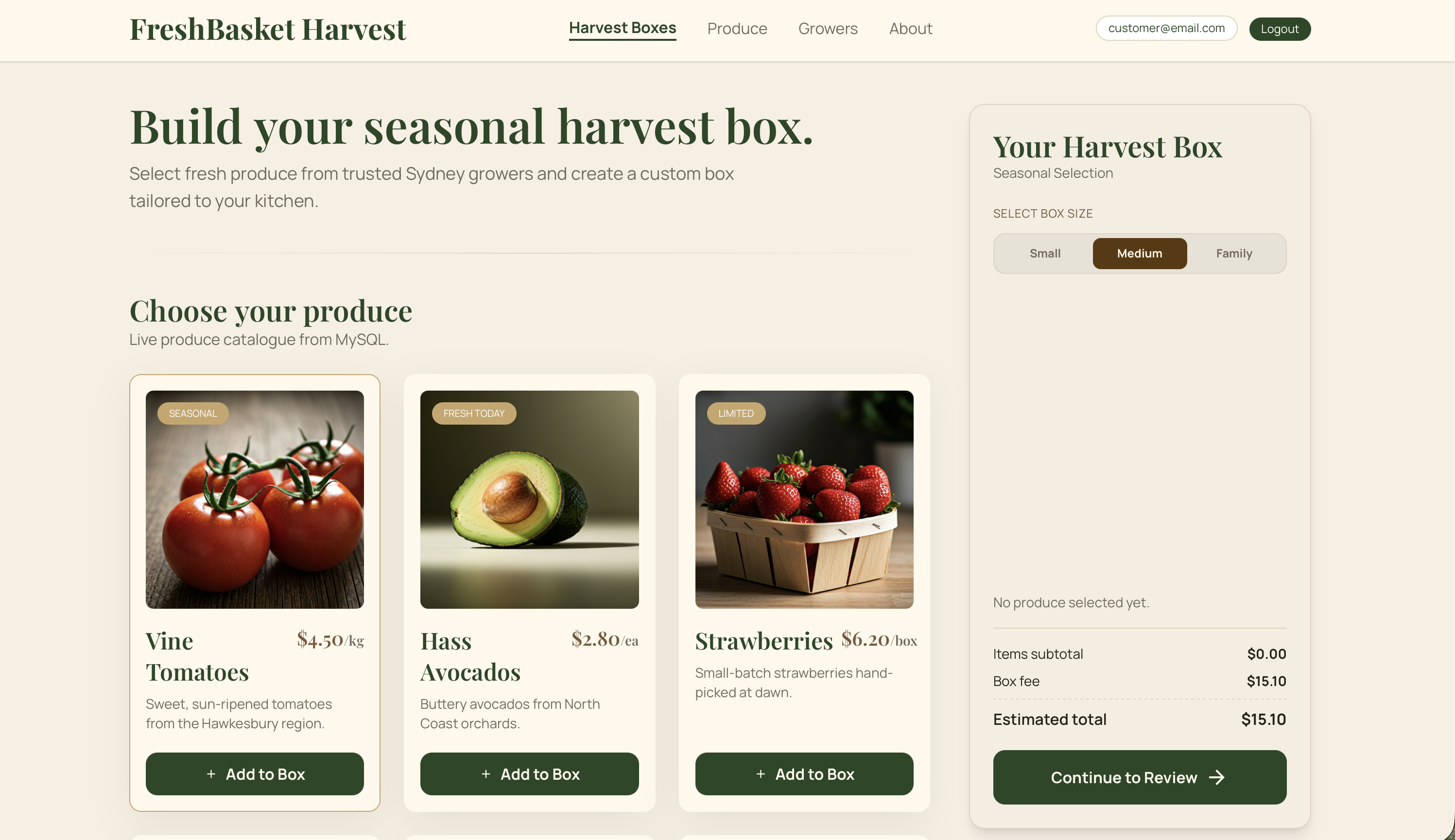

Customer Builder Flow
Application UICustomer produce-box builder flow running through the deployed web application.

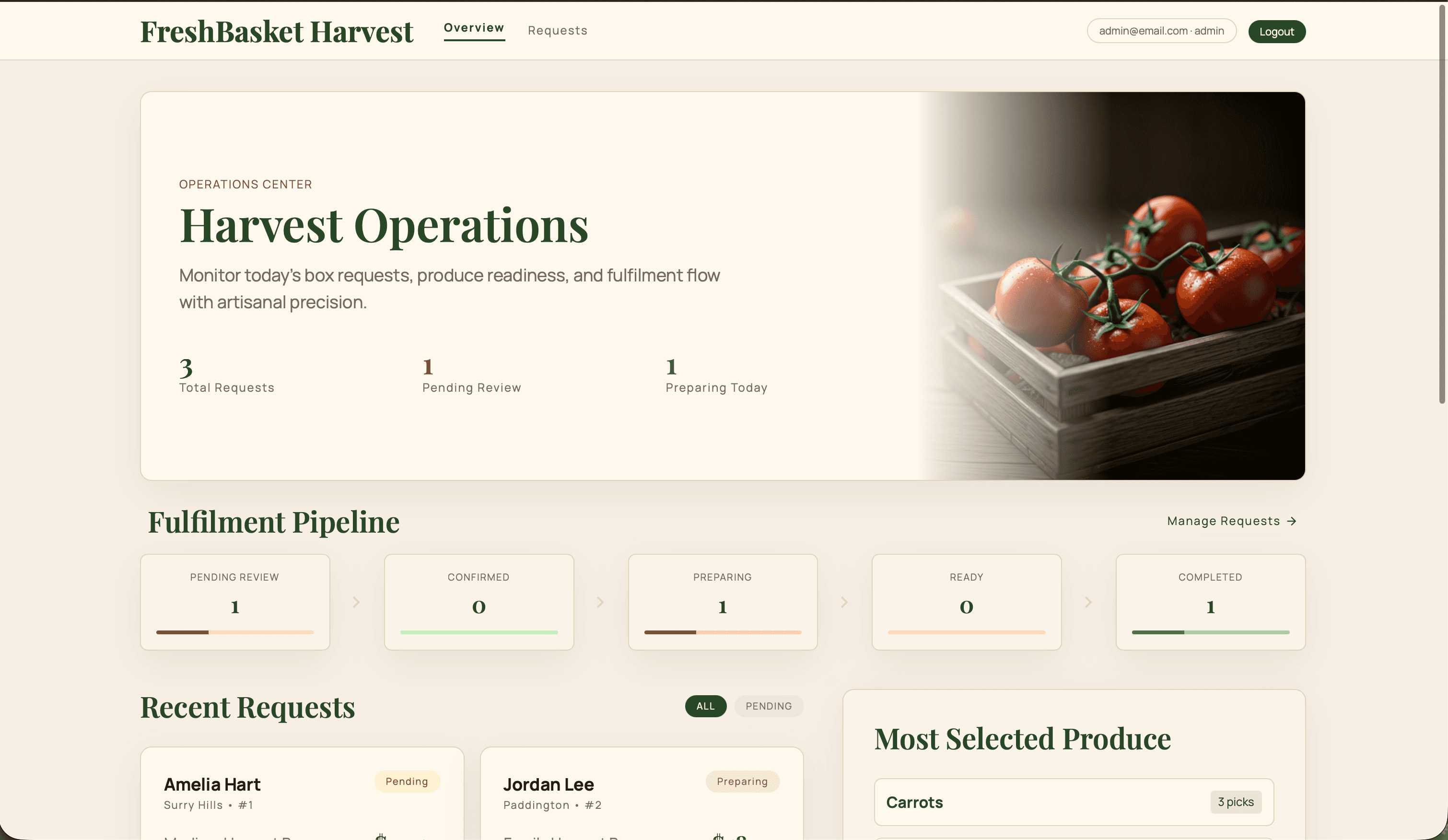

Admin Operations Dashboard
Application UIAdmin dashboard evidence for request monitoring and operations visibility.

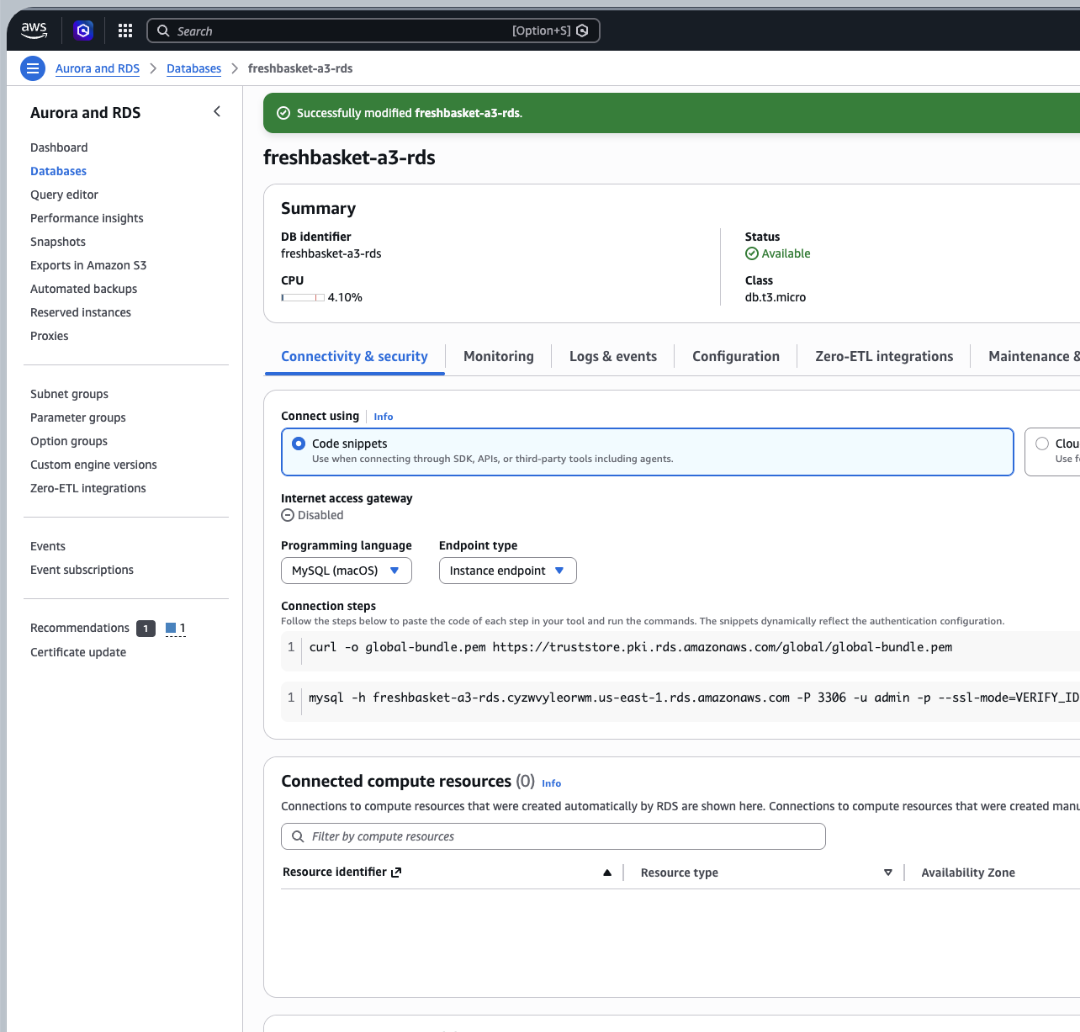

RDS MySQL Configuration
DatabaseRDS MySQL configuration evidence for the database backing the deployed app.

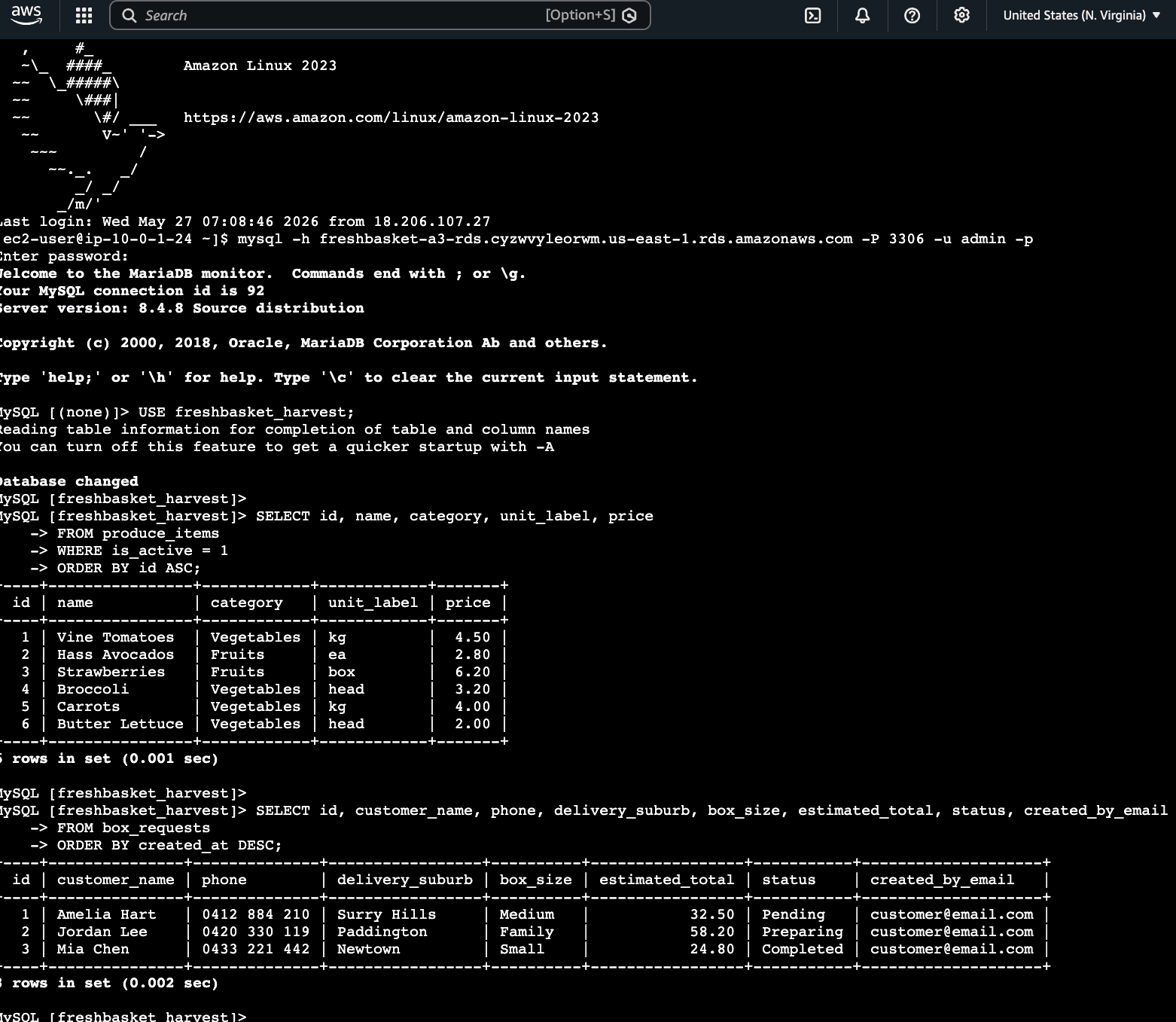

EC2 to RDS SQL Query
DatabaseEC2 terminal query evidence verifying produce and request records in RDS MySQL.

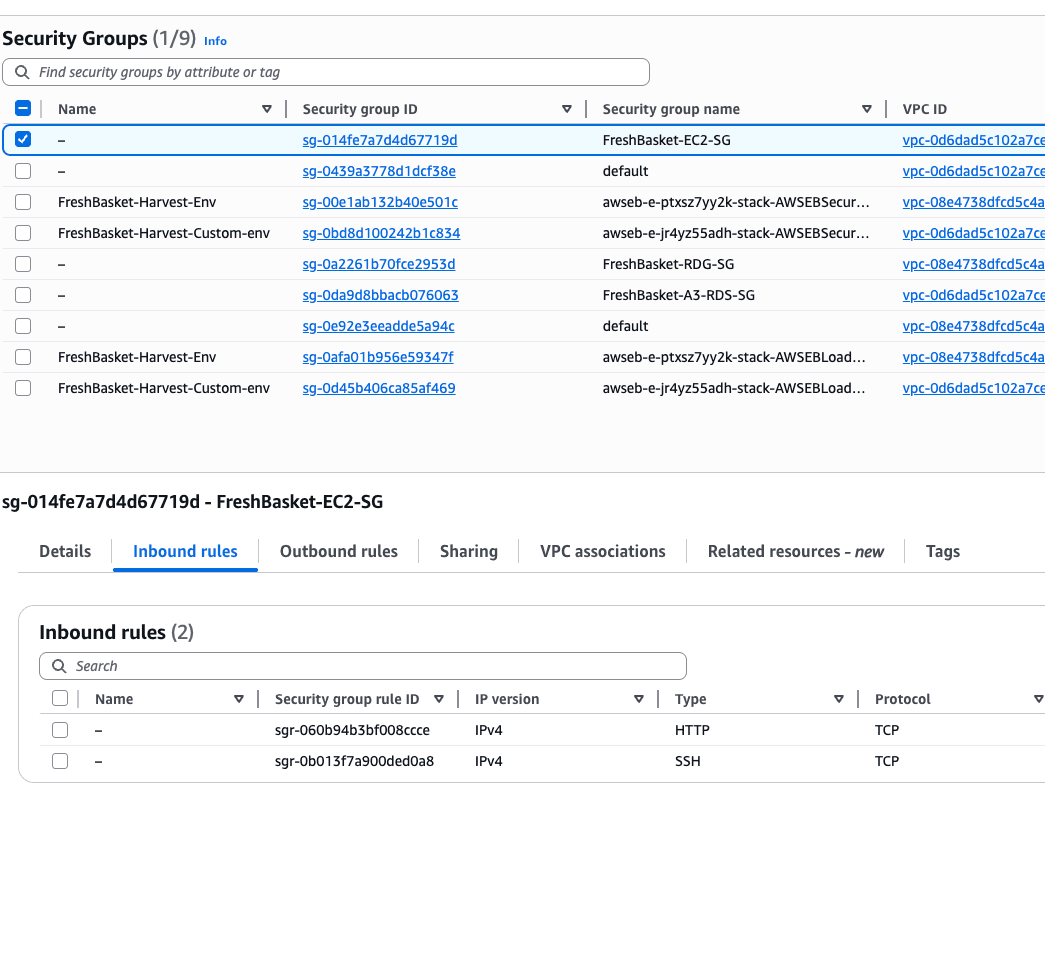

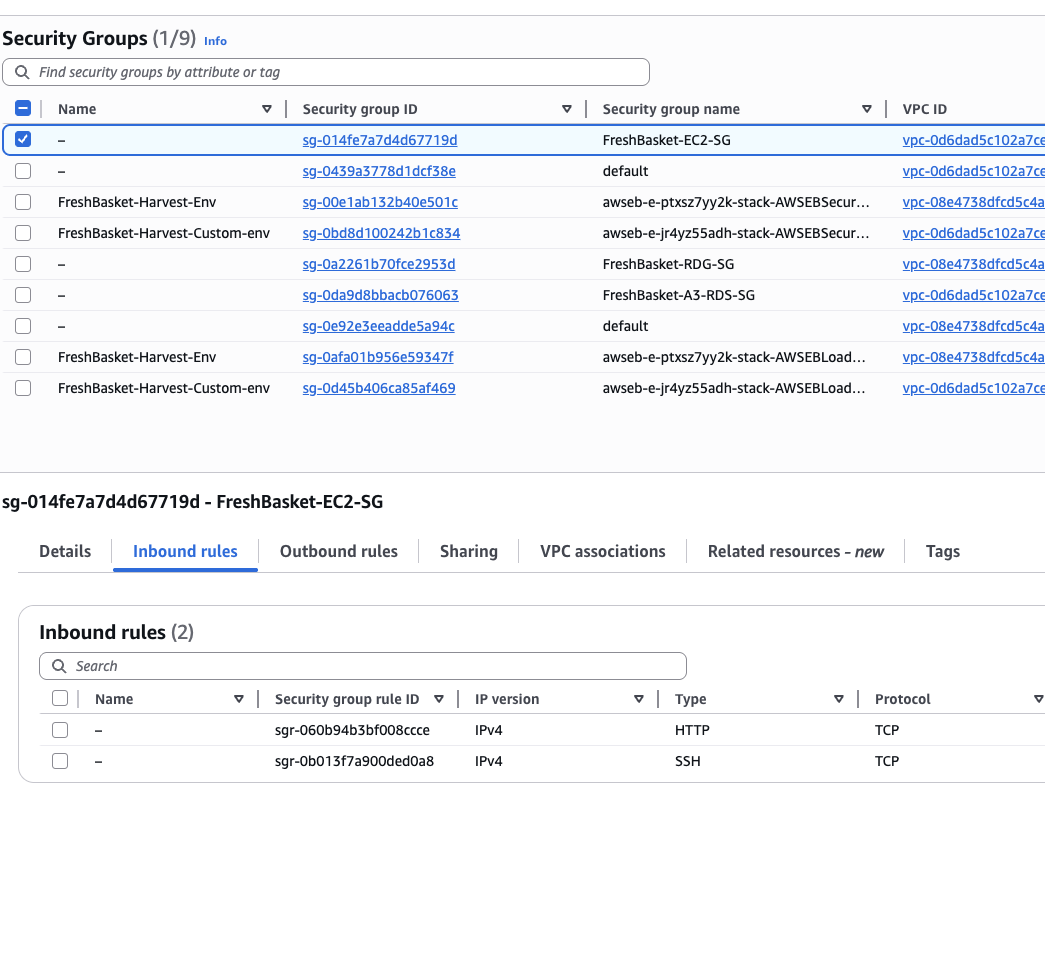

Security Groups
Security / networkingSecurity group evidence showing access control for web and database traffic.

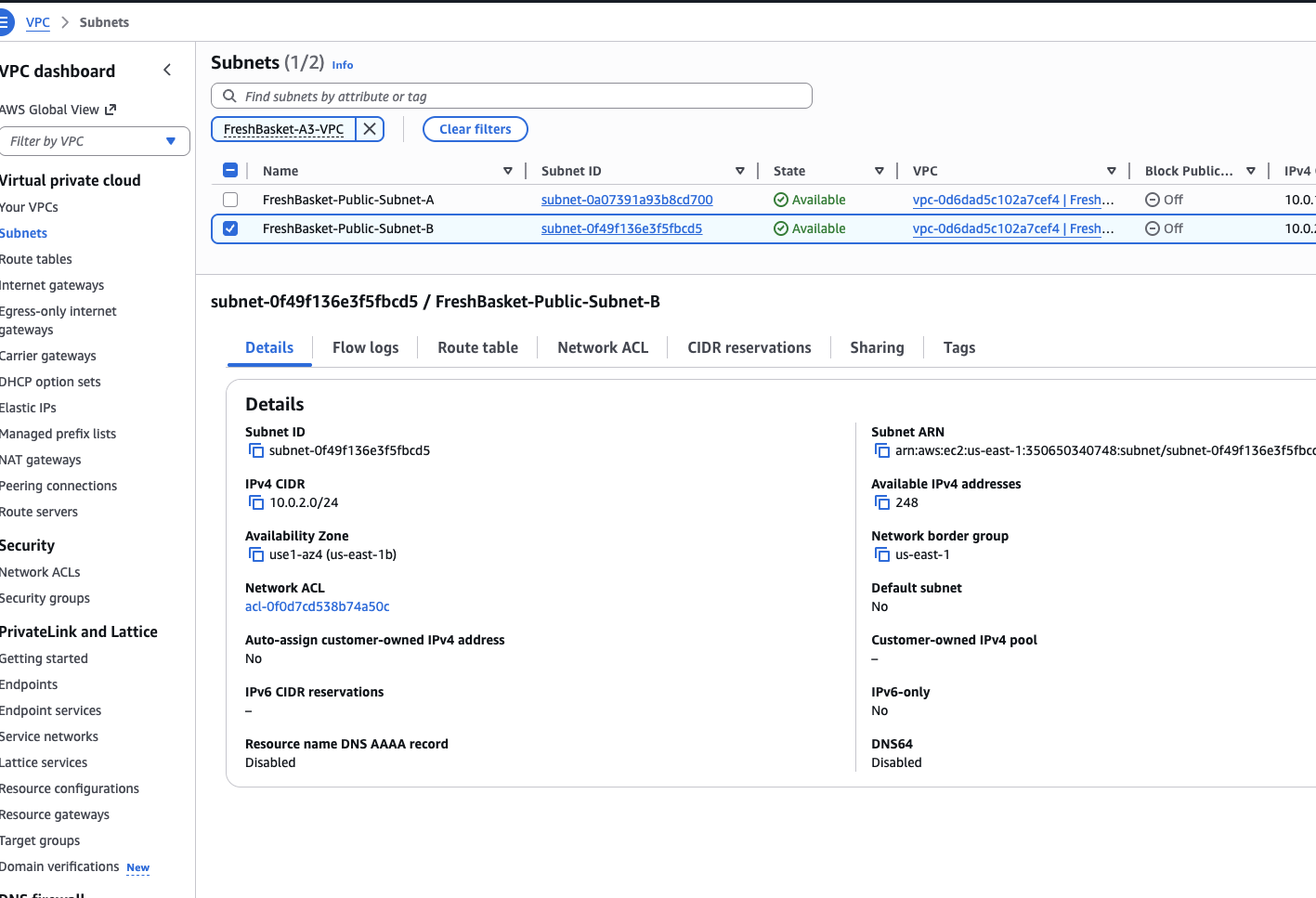

VPC Networking
Security / networkingVPC networking evidence showing how deployment resources were grouped.

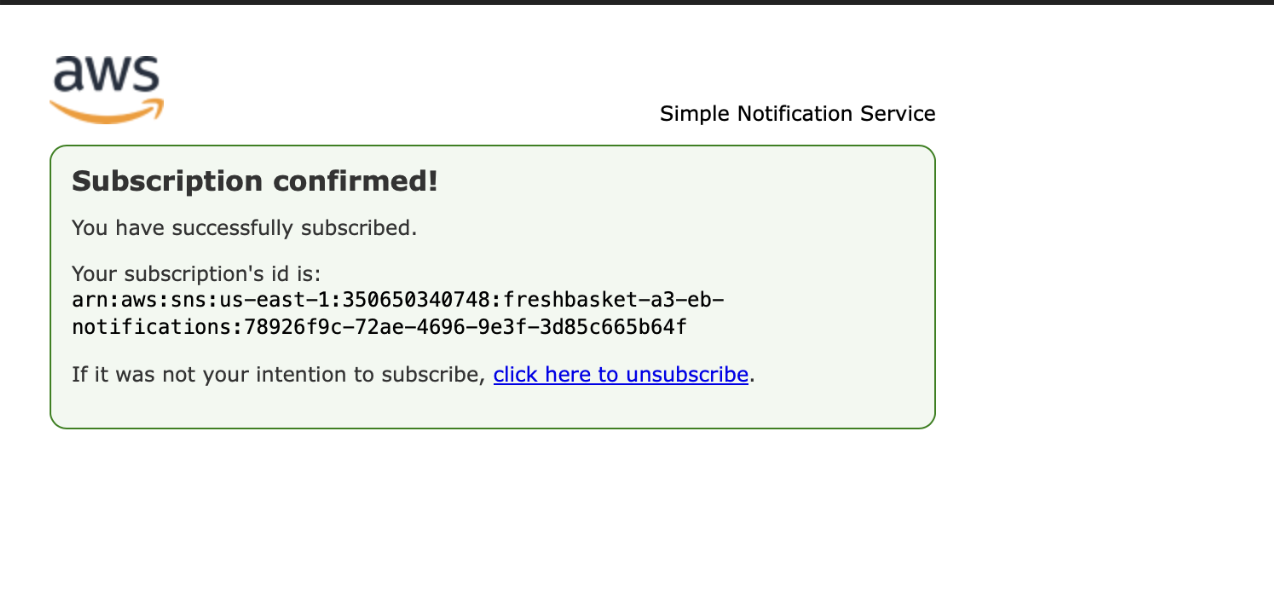

SNS Notification
NotificationSNS email subscription confirmation evidence for notification setup.
Swipe 0%
07 // troubleshooting
Problems solved.
The debugging work behind a healthy deployment, reliable database access, and safer network boundaries.
issue.01
Region restriction
AWS Academy required us-east-1, so deployment resources were rebuilt in the supported region.
issue.02
RDS connectivity
Fixed host, port, credentials, environment variables, and security group access.
issue.03
Elastic Beanstalk health
Resolved health/runtime issues by checking environment variables, events, and application startup behaviour.
issue.04
Security group access
Restricted RDS access to the application security group on port 3306.
08 // reflection
What I learned.
Cloud deployment is system thinking
The app, database, networking, roles, scaling, and runtime configuration all had to work together.
Environment variables matter
Cloud deployments depend on clean configuration boundaries between code and infrastructure settings.
Networking affects application behaviour
Security groups, routes, subnets, and database access rules directly shaped whether the app could run.
Evidence matters when environments expire
Screenshots, diagrams, and connection proof preserve the deployment story after lab resources shut down.
FreshBasket helped me move beyond local development and understand what it takes to run a full-stack application in a cloud environment. It strengthened my understanding of how RDS integration, Elastic Beanstalk configuration, networking, runtime settings, troubleshooting, and evidence capture work together.
documented.deployment
Cloud deployment, preserved through evidence.
FreshBasket shows how cloud infrastructure decisions shape a full-stack application once it leaves local development.
